5.5kw 110v 1500rpm Brushless Motor-YB132 5.5kw-15kw-Custom Motors-Ningbo Biote Mechanical Electrical Co.,Ltd

5.5kw 110v 1500rpm Brushless Motor

Features:
1. Motor type: Brushless DC motor
2 .Gearbox: Worm gearbox, reducer
3. Power: 5.5KW
4. Voltage: 110V
5. Speed: 1500rpm
6. Torque: 35N.m
7. Shaft dia: 38mm
8. Direction: CW /CCW
9. Addition: Manual brake
10. Typical application: Electric vehicles, Industrial automation, boat propulsion, industry drive, transport robot Power tools, Medical equipment, Cleanning machine, HVAC systems
11. Customized service: Motor's performance parameter, Shaft type, Wires and connectors

  • Information
  • Video
  • Downloads

5.5kw 110v 1500rpm Brushless DC motor


Brushless motors are a type of motor that, unlike traditional brush motors, do not require carbon brushes to generate rotational force. On the contrary, a brushless motor interacts with the permanent magnet on the motor rotor and the current on the motor stator by controlling the current in the motor, resulting in motion. Due to the lack of wear and friction caused by mechanical brushes, this type of motor has a longer service life and operates more smoothly than traditional motors


We also supply brushless dc motor with 12v 24v 48v. 72v.etc. if you need it. please contact us!

Type

Brushed motor

Brushless motor

Lifetime

Short (brushes wear out)

Long (no brushes to wear)

Speed and Acceleration

Medium

High

Efficiency

Medium

High

Electrical Noise

Noisy (bush arcing)

Quiet

Acoustic Noise & Torque Ripple

Poor

Medium (trapezoidal) or good (sine)

Cost

Lowest

Medium (added electronics)

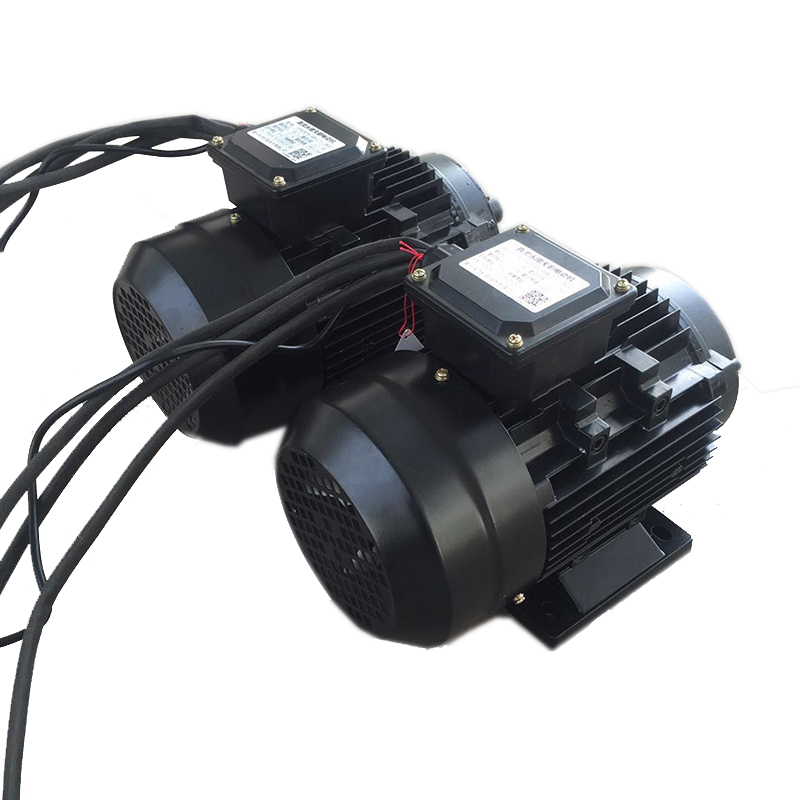

Large power brushless motor.jpg




The high-performance 6.3kW BLDC motor finds versatile applications across various industries, including:

  1. Electric Vehicles (EVs): Powering electric cars, motorcycles, scooters, and other EVs with its high torque and efficiency.

  2. Industrial Automation: Driving conveyor systems, pumps, compressors, and other industrial machinery, ensuring reliable and precise operation.

  3. Robotics: Enabling precise motion control in robotics applications, such as robotic arms, automated guided vehicles (AGVs), and drones.

  4. HVAC Systems: Running high-efficiency fans and blowers in heating, ventilation, and air conditioning (HVAC) systems for improved energy efficiency.

  5. Renewable Energy: Generating electricity in wind turbine and solar tracking systems, maximizing energy production with its high power output.

  6. Medical Equipment: Powering medical devices like surgical tools, dental equipment, and laboratory instrumentation, ensuring accuracy and reliability.

  7. Agriculture: Driving agricultural machinery, such as pumps, irrigation

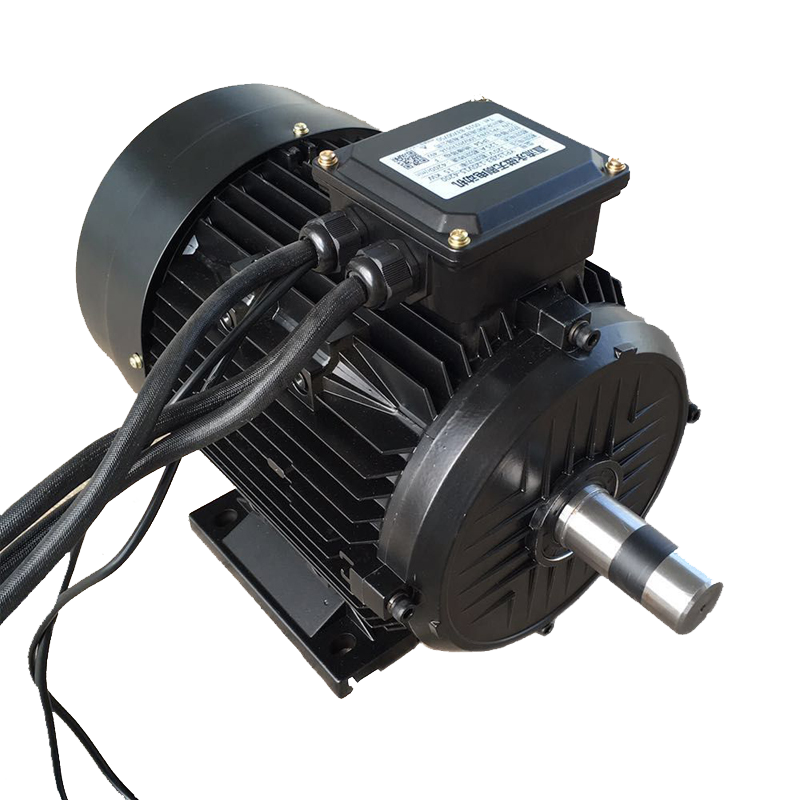

brushless dc motor.jpg

Biote Brushless DC motor

Brushless DC motors are widely used for many industrial applications as they have many advantages:

•High efficiency and high torque in a small diameter
•Low starting voltage,low rotor intertial, low noise,long lifetime
•wide range of speed control and steady working state with less inaccuracy

The size according Y2 motor to design. easy install


Widely used in automation equipment such as Copier ,printing machinery,Engraving machine,packing machine,grinting machine,robot,machine tool,Milling machine,Sewing machine,Engraving machine,Medical apparatus,ATM machine ect.


The brushless DC motor are accept custom. please contact us send the power. voltage. speed and so on.We can give best ieda

This type of brushless dc motor alsop have other frame size

YB80 series Brushless DC motor

YB90 series Brushless DC motor

........

YB32 series Brushless DC motor

the power from 0.5kw- 15KW. .

Perfect ventilation cooling
Low power, electric-saving and money-saving
Reduce construction cost of the investment and enhance economic efficiency

We can also supply the brushless dc motor controller

This is brushless dc motor controller
