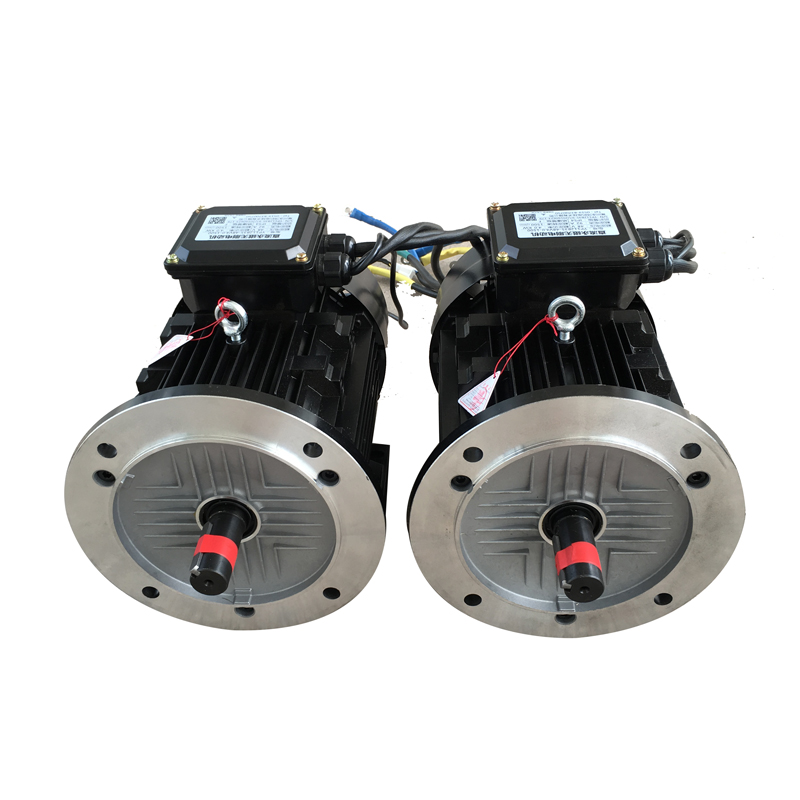

6.3kw 96v 1500rpm Brushless Motor
Features:
1. Motor type: Brushless DC motor
2 .Gearbox: Worm gearbox, reducer
3. Power: 6.3KW
4. Voltage: 96V
5. Speed: 1500rpm
6. Torque: 40N.m
7. Shaft dia: 38mm
8. Direction: CW /CCW
9. Addition: Manual brake
10. Typical application: Electric vehicles, Industrial automation, boat propulsion, industry drive, transport robot Power tools, Medical equipment, Cleanning machine, HVAC systems
11. Customized service: Motor's performance parameter, Shaft type, Wires and connectors
- Information
- Video
- Downloads
6.3kw 96v 1500rpm Brushless DC motor
The brush motors have a higher thermal impedance because the windings are located on the inner rotating element and have a less efficient thermal path in which to dissipate the heat generated in them. The brushless DC motor has a lower thermal impedance because the windings are located on the outer member giving it a more efficient thermal path and a resultant higher heat dissipation rate. Thus, a brushless unit of the same size can generate more continuous torque than a brush motor. Another consequence of the winding location is that brush motors tend to have a higher inertia then a
brushless motor of similar torque rating. In servo applications this can result in a significant motor size reduction when motor inertia is more dominant. The response rate of the brushless motor can be higher because of its relatively lower rotor inertia.
We also supply brushless dc motor with 12v 24v 48v. 72v.etc. if you need it. please contact us!
The high-performance 6.3kW BLDC motor finds versatile applications across various industries, including:
Electric Vehicles (EVs): Powering electric cars, motorcycles, scooters, and other EVs with its high torque and efficiency.
Industrial Automation: Driving conveyor systems, pumps, compressors, and other industrial machinery, ensuring reliable and precise operation.
Robotics: Enabling precise motion control in robotics applications, such as robotic arms, automated guided vehicles (AGVs), and drones.
HVAC Systems: Running high-efficiency fans and blowers in heating, ventilation, and air conditioning (HVAC) systems for improved energy efficiency.
Renewable Energy: Generating electricity in wind turbine and solar tracking systems, maximizing energy production with its high power output.
Medical Equipment: Powering medical devices like surgical tools, dental equipment, and laboratory instrumentation, ensuring accuracy and reliability.
Agriculture: Driving agricultural machinery, such as pumps, irrigation
Biote Brushless DC motor
Brushless DC motors are widely used for many industrial applications as they have many advantages:
•High efficiency and high torque in a small diameter
•Low starting voltage,low rotor intertial, low noise,long lifetime
•wide range of speed control and steady working state with less inaccuracy
•The size according Y2 motor to design. easy install
Widely used in automation equipment such as Copier ,printing machinery,Engraving machine,packing machine,grinting machine,robot,machine tool,Milling machine,Sewing machine,Engraving machine,Medical apparatus,ATM machine ect.
The brushless DC motor are accept custom. please contact us send the power. voltage. speed and so on.We can give best ieda
This type of brushless dc motor alsop have other frame size
YB80 series Brushless DC motor
YB90 series Brushless DC motor
........
YB32 series Brushless DC motor
the power from 0.5kw- 15KW. .
Perfect ventilation cooling
Low power, electric-saving and money-saving
Reduce construction cost of the investment and enhance economic efficiency
We can also supply the brushless dc motor controller
This is brushless dc motor controller
