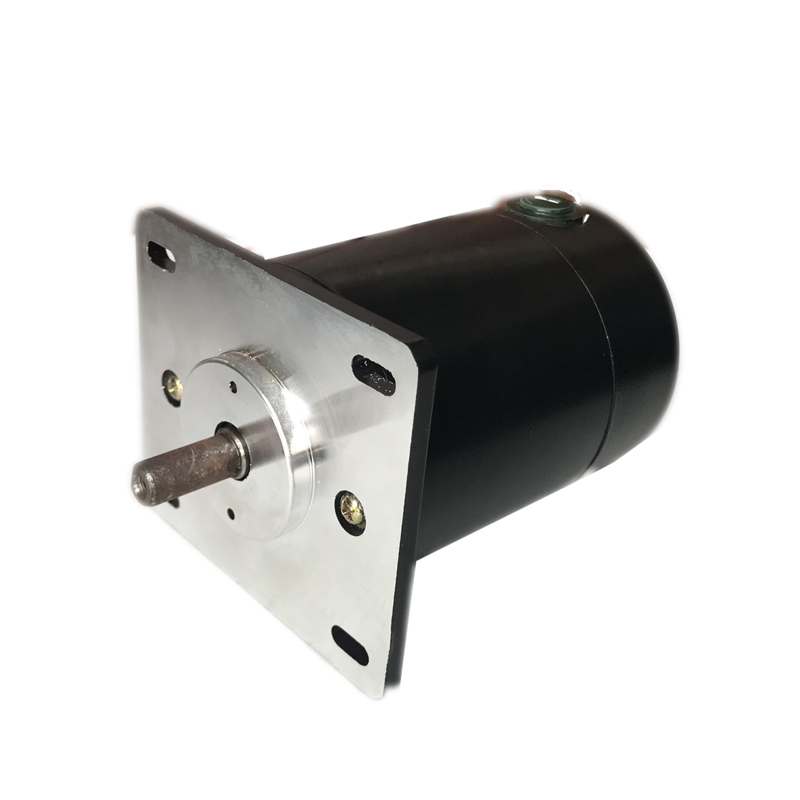

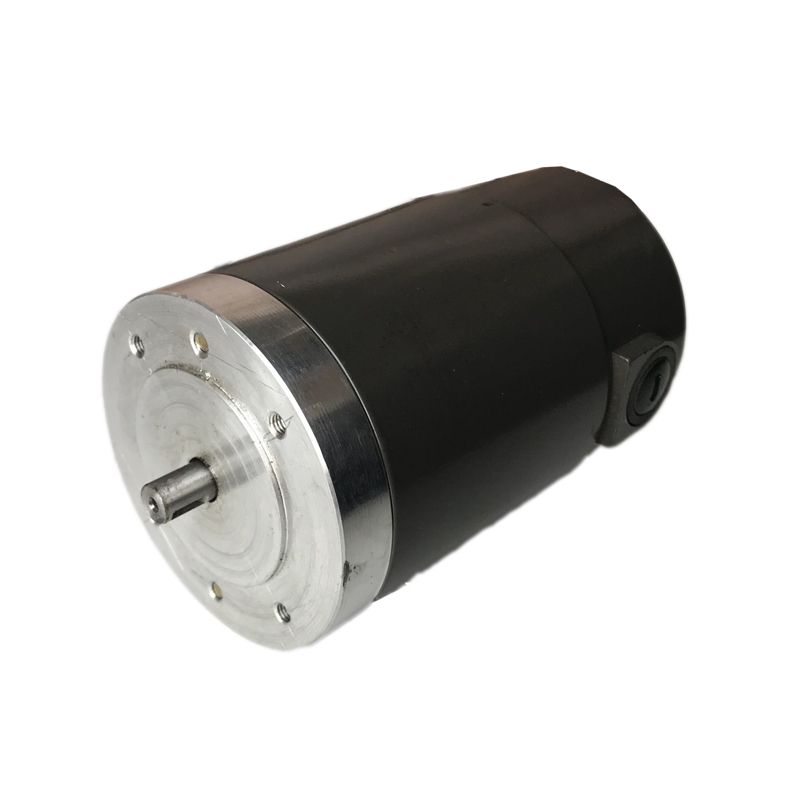

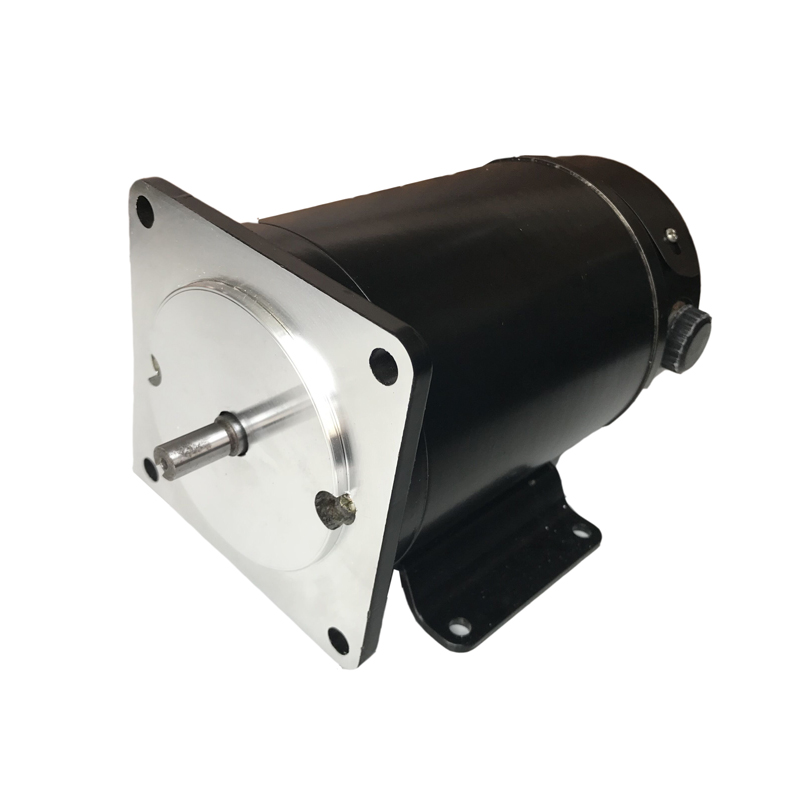

55ZYT 50w 24v-48v high speed 6000RPM dc electric motor

Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 24v, 27v, 48v, 110v
4. Speed:6000rpm
5. Type: 55ZYT
6. Shaft dia: 9mm
7. Diameter:55mm
8. Direction: CW /CCW
9. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.

  • Information
  • Video
  • Downloads

ZYT55 50W 6000RPM 24V DC

50W 24V 6000RPM brushed motor is a type of electric motor that can deliver up to 50 watts of power at 24 volts and operates at a speed of 6000 revolutions per minute. It is commonly used in various industrial and commercial applications such as power tools, home appliances, and automotive systems.

The motor consists of a rotor, stator, commutator, windings, brushes, and brush holders. The rotor is the rotating part of the motor and is made up of a shaft, commutator, and a set of windings. The stator is the stationary part of the motor and is made up of a series of permanent magnets or electromagnets.

When electrical current is applied to the windings on the rotor, it creates a magnetic field that interacts with the magnetic field of the stator, causing the rotor to turn. The brushes, which are small pieces of carbon or graphite, conduct electrical current to the windings via the commutator, ensuring that the electrical current is delivered to the windings in the correct sequence to maintain the rotation of the rotor.

One of the main advantages of a 50W 24V 6000RPM brushed motor is its high power output and speed, making it suitable for various high-power and high-speed applications. However, they do require periodic maintenance or replacement of the brushes and commutator due to wear and tear.

In summary, a 50W 24V 6000RPM brushed motor is a high-power and high-speed motor commonly used in various industrial and commercial applications. It consists of a rotor, stator, commutator, windings, brushes, and brush holders, and is an ideal solution for various high-power and high-speed applications.

TypeTorqueSpeedPowerVoltageCurrent(A)CW/CCW
(mN.m)(r/min)(w)(v)<speed   tolerance(r/min)
55ZYT0163.7300020241.5200
55ZYT0263.7300020271.3200
55ZYT0363.7300020480.7200
55ZYT0463.73000201100.34200
55ZYT0555.7600035242.5300
55ZYT0655.7600035272.2300
55ZYT0755.7600035481.3300
55ZYT0855.76000351100.54300
55ZYT5192.3300029242.1200
55ZYT5292.3300029271.8200
55ZYT5392.3300029481.1200
55ZYT5492.33000291100.46200
55ZYT5579.6600050243.45300
55ZYT5679.6600050273.1300
55ZYT5779.6600050481.74300
55ZYT5879.66000501100.74300
55ZYT6589.27500701101400
