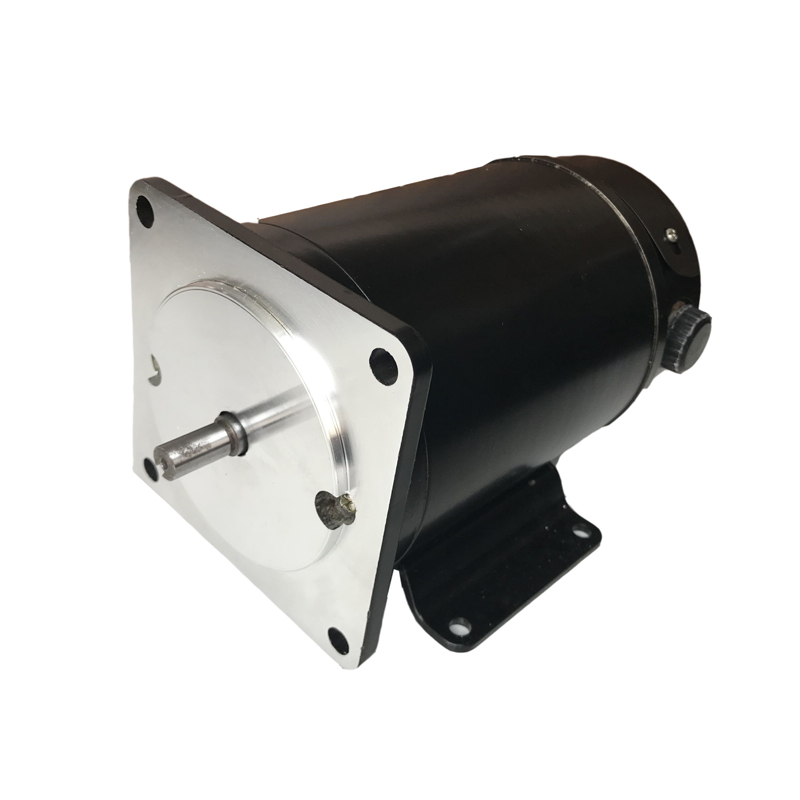

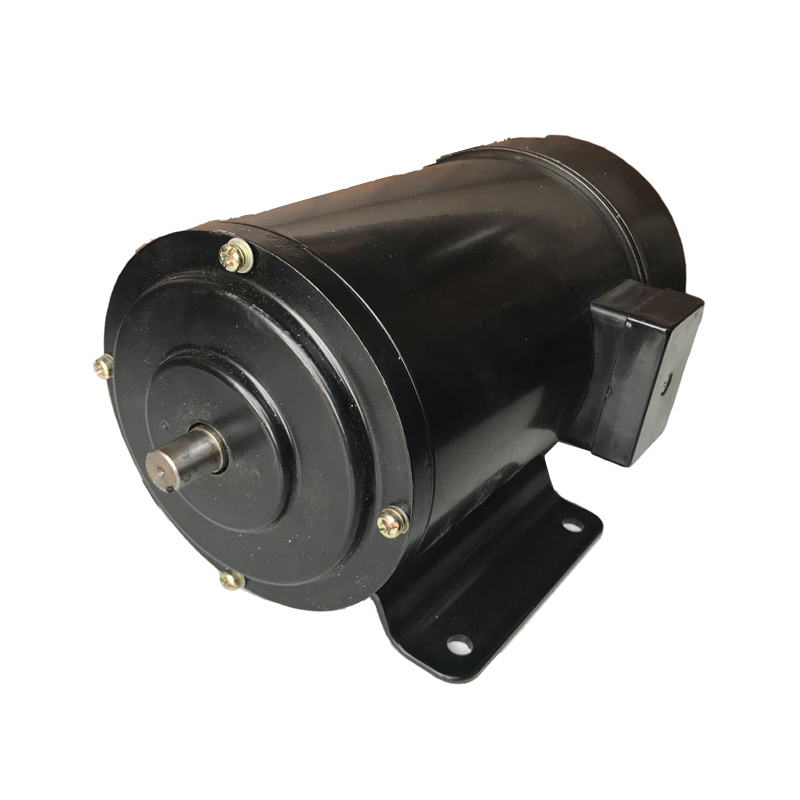

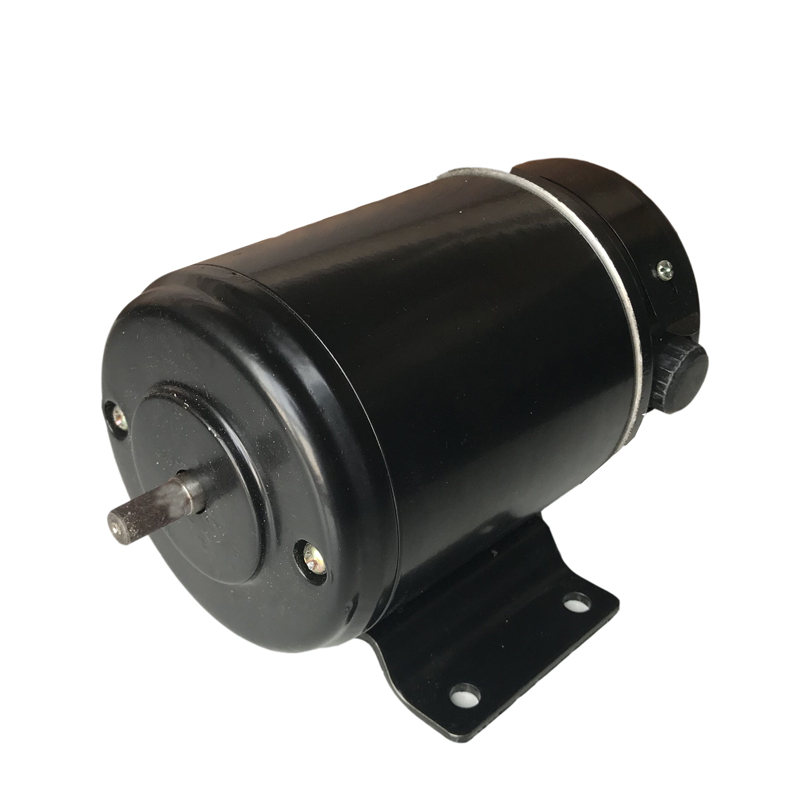

55ZYT 20W 3000RPM 24V-110V DC Motor for Industrial

ZYT55 20W 3000RPM 24V DC

ZYT Series Brushed motors consist of two main components: a rotor and a stator. The rotor is the rotating part of the motor and is made up of a shaft, a commutator, and a set of windings. The stator is the stationary part of the motor and is made up of a series of permanent magnets or electromagnets.

When electrical current is applied to the windings on the rotor, it creates a magnetic field that interacts with the magnetic field of the stator, causing the rotor to turn. The commutator, which is a set of metal contacts mounted on the rotor, ensures that the electrical current is delivered to the windings in the correct sequence to maintain the rotation of the rotor.

Brushed motors also have brushes, which are small pieces of carbon or graphite that come into contact with the commutator and conduct electrical current to the windings. The brushes are held in place by brush holders and are spring-loaded to ensure constant contact with the commutator. The brushes and commutator are the main wear components in brushed motors and require periodic maintenance or replacement.

In summary, brushed motors consist of a rotor, stator, commutator, windings, brushes, and brush holders. The interaction between the magnetic fields of the rotor and stator, along with the electrical current delivered to the windings via the brushes and commutator, allows the motor to rotate.
