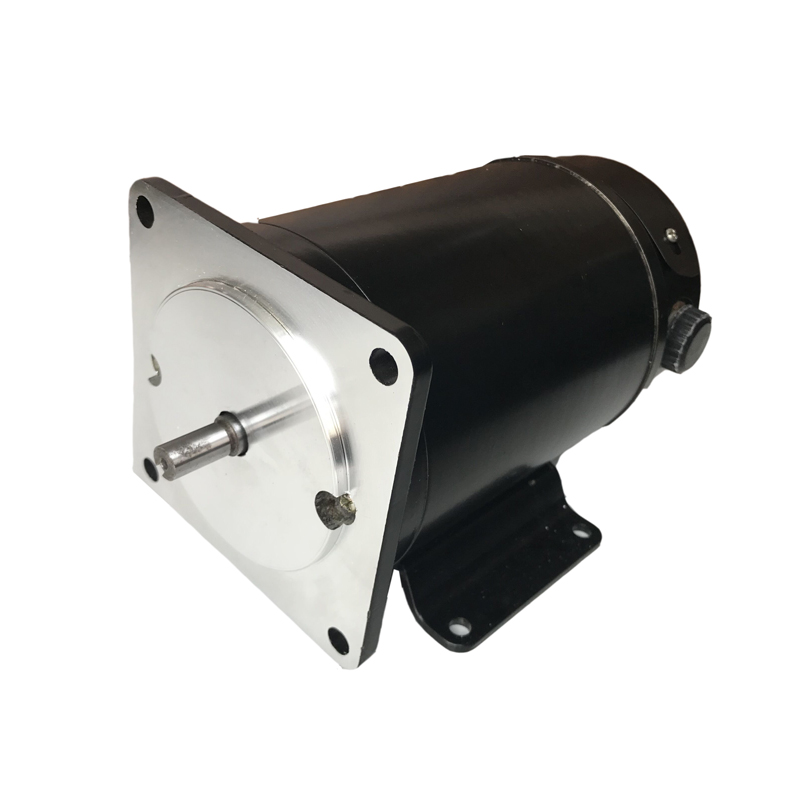

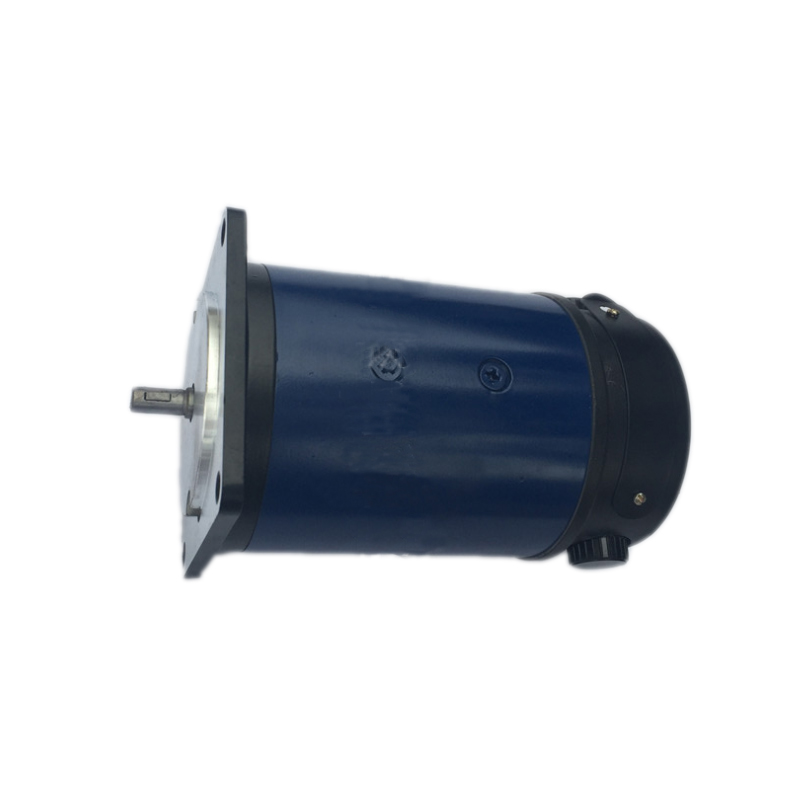

110ZYT 123W 220v Brush Permanent Magnet Motor

Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 110, 220v
4. Speed:1500rpm
5. Type: 110ZYT
6. Shaft dia: 12mm
7. Diameter:100mm
8. Direction: CW /CCW
9. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.

  • Information
  • Video
  • Downloads

ZYT110 123W 1500RPM 110V 220V DC Motor

ZYT brushed motor is a type of DC motor that uses a commutator and brushes to transfer electrical current to the motor's windings, creating a magnetic field that causes the motor to rotate. It is a high-quality motor that offers several advantages over other types of brushed motors.

High efficiency: ZYT brushed motors are highly efficient, resulting in low power consumption and reduced heat generation. This makes them an ideal solution for applications that require high efficiency and low power consumption.

High torque: ZYT brushed motors are capable of delivering high torque output, making them suitable for applications that require high torque and low-speed operation.

Low noise: ZYT brushed motors operate quietly, making them an ideal solution for applications that require low noise operation.

Long lifespan: ZYT brushed motors are designed to have a long lifespan, making them a reliable solution for various industrial and commercial applications.

Customizable: ZYT brushed motors can be customized to meet the specific requirements of the application, including different voltage and power ratings, shaft configurations, and mounting options.

Cost-effective: ZYT brushed motors are cost-effective compared to other motor types, making them an ideal solution for various low-power applications.

In summary, the advantages of a ZYT brushed motor include high efficiency, high torque, low noise, long lifespan, customizability, and cost-effectiveness. These advantages make them an ideal solution for various industrial and commercial applications, including robotics, pumps, fans, and conveyor systems.

These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.



The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.

TypeTorqueSpeedPowerVoltageCurrent(A)CW/CCW
(mN.m)(r/min)(w)(v)<speed   tolerance(r/min)
110ZYT0178415001231101.8100
110ZYT0278415001232200.9100
110ZYT0363730002001102.8200
110ZYT0463730002002201.4200
110ZYT0563730002002413200
110ZYT51117715001851102.5100
110ZYT52117715001852201.25100
110ZYT5398030003081104200
110ZYT5498030003082202200
110ZYT5598030003082416.5200







TypeTorqueSpeedPowerVoltageCurrent(A)CW/CCW
(mN.m)(r/min)(w)(v)<speed   tolerance(r/min)
110ZYT101156015002451103100
110ZYT102156015002452201.5100
110ZYT103127430004001104.8200
110ZYT104127430004002202.4200
110ZYT105127430004002422.5200
110ZYT151239015003751104.5100
110ZYT152239015003752202.3100
110ZYT153223030007001108.5200
110ZYT154223030007002204.2200
110ZYT155223030007002445200
