1hp 56c High torque Multistage Centrifugal Pump 1800rpm 3600rpm motor American-Hydraulic Pump Motor-Custom Motors-Ningbo Biote Mechanical Electrical Co.,Ltd

1hp 56c High torque Multistage Centrifugal Pump 1800rpm 3600rpm motor American

Maximize performance with a High Torque Multistage Centrifugal Pump. Efficiently handle high viscosity liquids and solid particles in various industries.Trust our Google SEO expertise to boost your brand exposure and drive business growth. #pump #industrial #highperformance

  • Information
  • Video
  • Downloads

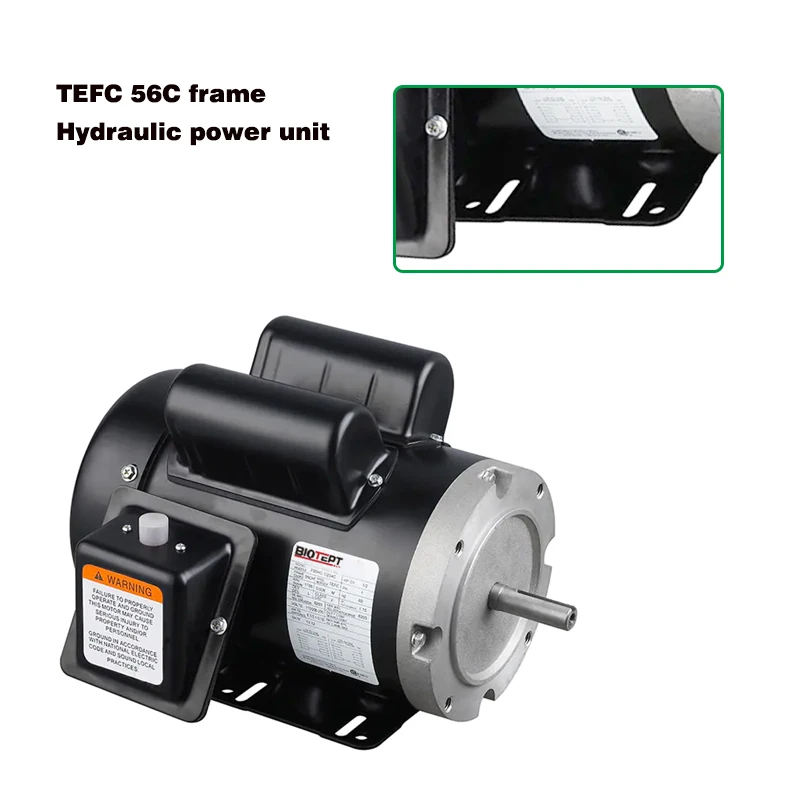

56C, 56HC TEFC Single phase motor for hydraulic pump motor

Steel Housing: The compressor duty motor is made of high-quality steel material. The firm and solid material can protect the engine well, and the smooth appearance is easy to clean; it includes the mounting bracket, and the bracket structure is stable and easy to use. High Speed Cooling Fan: Big fan at one end cools the motor in hours' running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes. Multiple Application: The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.FeaturesHP: 1HP-3HP Pole: 2P,4P Frame: 56C, 56HC Rolled Steel housing NEMA design: B Service Factor: 1.15 Insulation ClasS: F Enclosure: TEFC Protection Class: IP44 CSA&CUS certifiled

HP

RPM

NEMA FRAME

MODEL

Volts

ENCL.

Full Load AMPS

WGT. LBS.

1

3600

56C

F56C1S2C

115/230

TEFC

8.3/4.4

30

1

1800

56C

F56C1S4C

115/230

TEFC

9.2/4.7

38

2

3600

56C

F56C2S2C

115/230

TEFC

16.5/8.4

44

2

1800

56C

F56C2S4C

115/230

TEFC

16.5/8.3

47

3

3600

56C

F56C3S2C

230

TEFC

13

60

1

1800

56C

F56C1M4A

230/460

TEFC

3.4/1.7

33

1

1800

56C

F56C1M4D

575

TEFC

1.4

33

1.5

1800

56C

F56C1.5M4A

230/460

TEFC

5.2/2.6

37

1.5

1800

56C

F56C1.5M4D

575

TEFC

2

37

2

1800

56C

F56C2M4A

230/460

TEFC

6.0/3.0

40

2

1800

56C

F56C2M4D

575

TEFC

2.5

40

2

3600

56C

F56C2M2D

575

TEFC

2.1

34

3

1800

56HC

F56HC3M4A

230/460

TEFC

9.0/4.5

47

3

1800

56HC

F56HC3M4D

575

TEFC

3.6

47

Hydraulic motors use a hydraulic power source to create mechanical energy to run winches, conveyors, balers, process equipment, mixer and agitator drives, and other industrial, agricultural, and process equipment. Gear motors, sometimes called low-speed, high-torque motors, have fixed displacement to provide constant torque and output motion.

Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time

FEATURES AT A GLANCE

Totally enclosed motors are suitable for use in humid environments or dusty, contaminated atmospheres. UL Recognized and CSA Certified* AC electric motors feature heavy gauge steel frame and base and high-quality ball bearings.

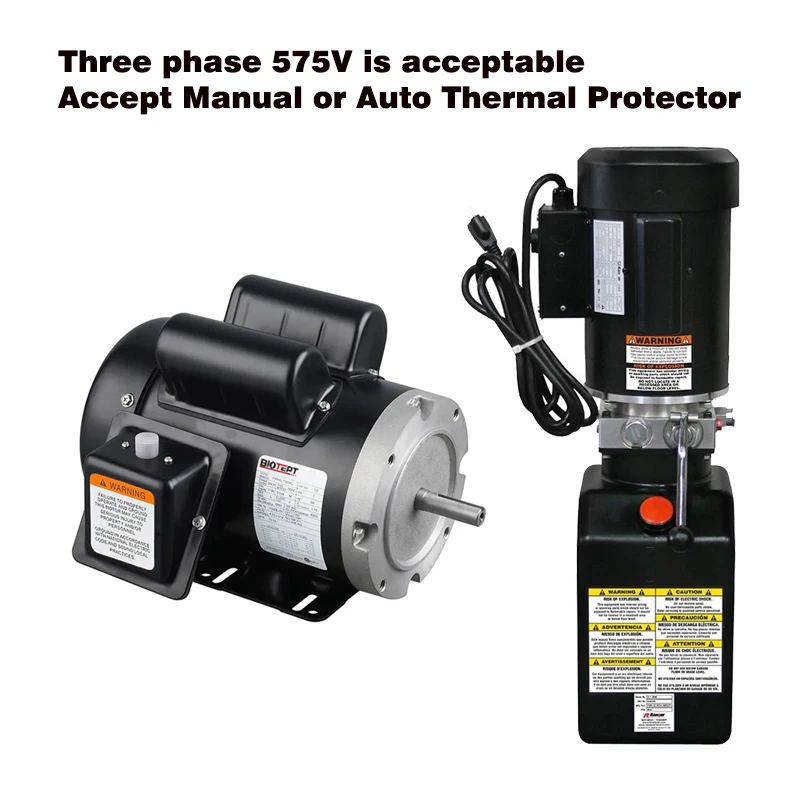

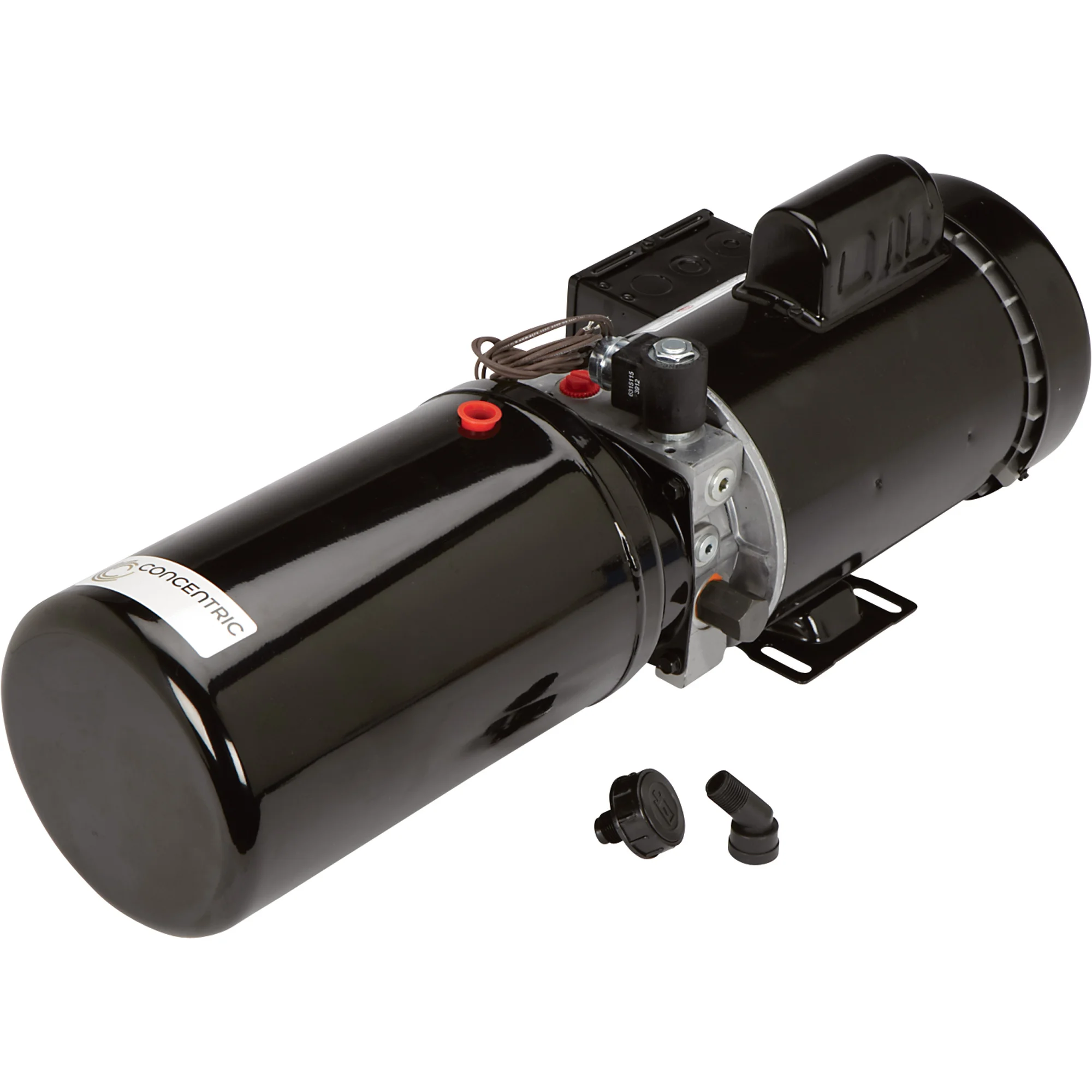

1 HP 115/208-230 Volt AC Hydraulic Power Unit, The motor runs extremely quiet and is kept completely covered from dust, dirt, falling debris and even high humidity.  It has a smaller tank to accompany its nema Single phase motor.

1HP, 1.5HP, 2HP, 3HP by 56C and 56HC frame. three phase AC motor TEFC for hydraulic pump motor, high IP44-protection class and silver-plated contacts meet tough demands for a long service life, auto lift and your power unit.




Company Information

Our company was founded in 2007, and possesses advanced production equipment and automated assembly lines. Our main products include AC motors, DC motors and other accessories, electronic components, plastic product materials, and hardware products. We have more than 50 Professional and technical personnel of various projects, have strong motor design and production & processing capacity. Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation. "Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!0:00

02:08


FAQ

Q1: What kind motors you can provide?

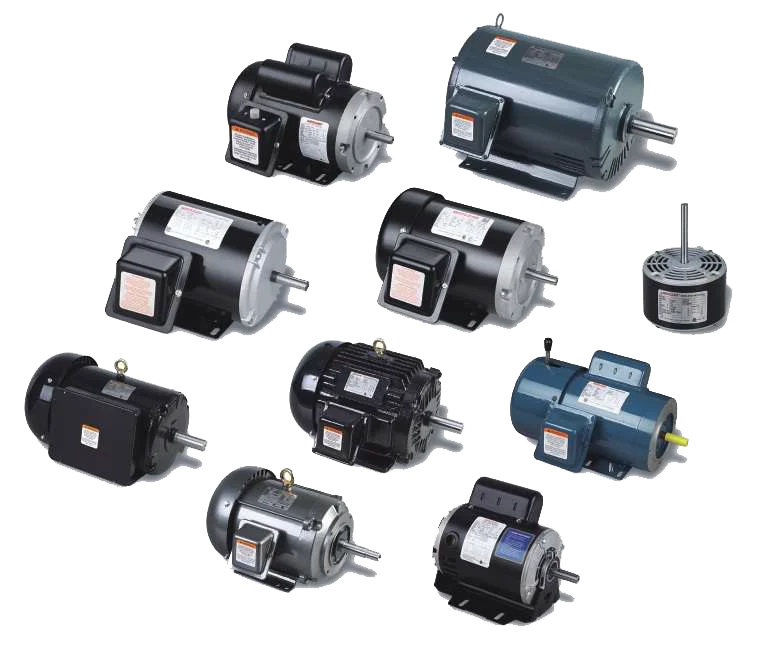

A1: Our main products are NEMA standard and IEC standard motors,  Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on

Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce

Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.

Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.

Q5: Do you have any certifications?
A5: We have North America certificates

Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
