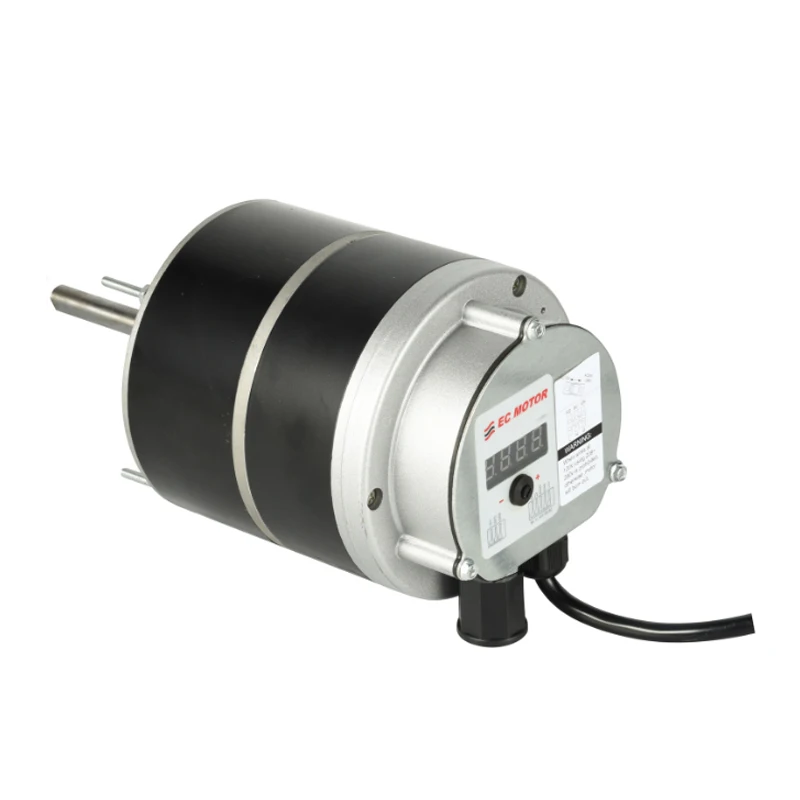

1/8HP NEMA 48 EC Fan Motor 115/230v TEAO ODP

HP: 1/8HP
Frame: NEMA 48
Rated speed: 1750rpm
Insulation Class: F
Enclosure: TEAO, ODP
IP Class: IP23, IP55
Motor protection: program protection, failure code display
Function setting: 0-10V sensor speed adjustment,

Applicable in Heating, Ventilation, Air Conditioning and Refrigeration


  • Information
  • Video
  • Downloads






Fan motor

HP: 1/10HP-1.5HP
Pole: 4P, 6P, 8P
Frame: 48, 56
Rolled steel, C face kit
NEMA design: N
Service factor:1.0,1.4
Insulation Class: F (UL approved)
Enclosure: TEAO
IP Class: IP44, IP55
CSA and CUS certified
Accept auto thermal protector
Uses: air over duty, typically for blowers, fans, garage door



The follows just show a part of model:

HP

RPM

FRAME

MODEL

VOLTS

HZ

ENCL

S.F.

AMPS

WGT

1/10

1625

48

A481/10S4C

115/230

60

TEAO

1

1.3/0.65

12

1/8

1625

48

A481/8S4C

115/230

60

TEAO

1

1.64/0.84

12

1/6

810

48

A481/6S8C

115/230

60

TEAO

1

2.75/1.38

14

1/5

1625

48

A481/5S4C

115/230

60

TEAO

1

2.2/1.1

12

1.5

1750

56

A56

208-230/460

61

TEAO

1.4

6.5-5.9/2.95

37

Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time

EC Fan Motor

HP: 1/4HP-1HP Frame: NEMA 48 Rated speed: 1800rpm, 1200rpm, 1000rpm Insulation Class: F Enclosure: TEAO, ODP IP Class: IP23, IP55 Motor protection: program protection, failure code display Function setting: 0-10V sensor speed adjustment, motor CW and CCW switchover, high and low voltage switchover, RJ45 speed adjust interface, RS485 communication control external remote speed adjustment configuration, maximum RPM setting, etc, CSA and CUS certified





An electric motor converts electrical energy into mechanical energy. In an HVAC system, motors typically turn the air conditioning fan blade and the furnace blower motor. Newer high efficient motors, such as X13 and ECM motors, have "end caps" that control the motor speeds. These can be removed and replaced separately.










Power

Voltage

Hz

Class

Rated speed

Speed range

1/4HP

115/208-277V

60/50hz

F

1800rpm

1200rpm

1000rpm

300-1800rpm

300-1200rpm

300-1000rpm

1/3HP

1/2HP

3/4HP

1HP

Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time

Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time

FEATURES AT A GLANCE


This NEMA 48 frame single phase EC Fan motor can use for Smart IOT, Smart speed adjustment, Smart maintenance, With premium efficiency, have long life, Is your best choice!

This motor is for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required.  Motor Thermal Protection Auto

Permanent split capacitor (PSC) condenser fan AC

motors run with a required capacitor  They have a high starting torque and energy efficient performance
