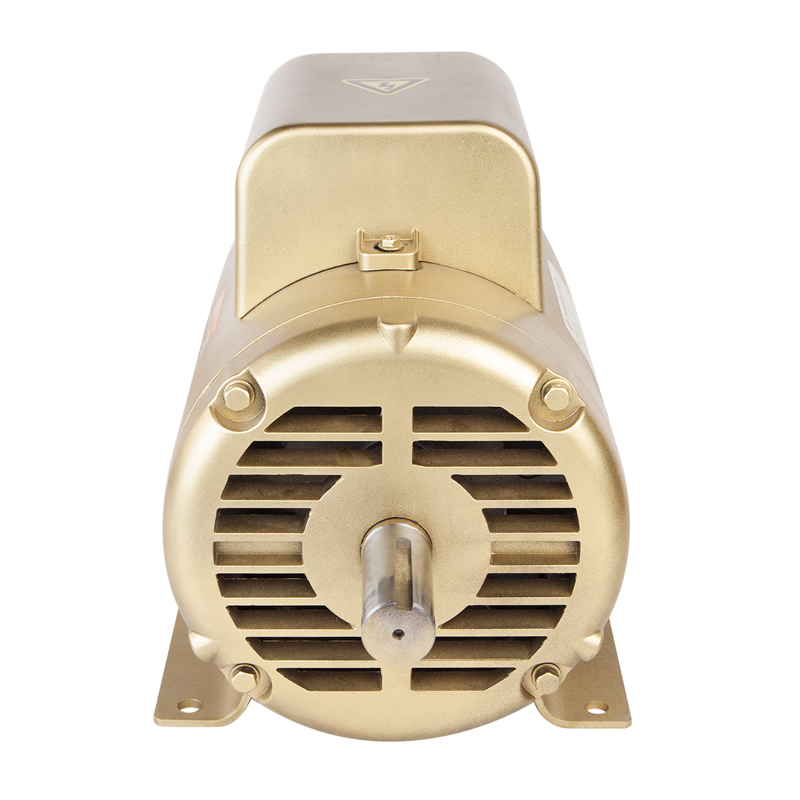

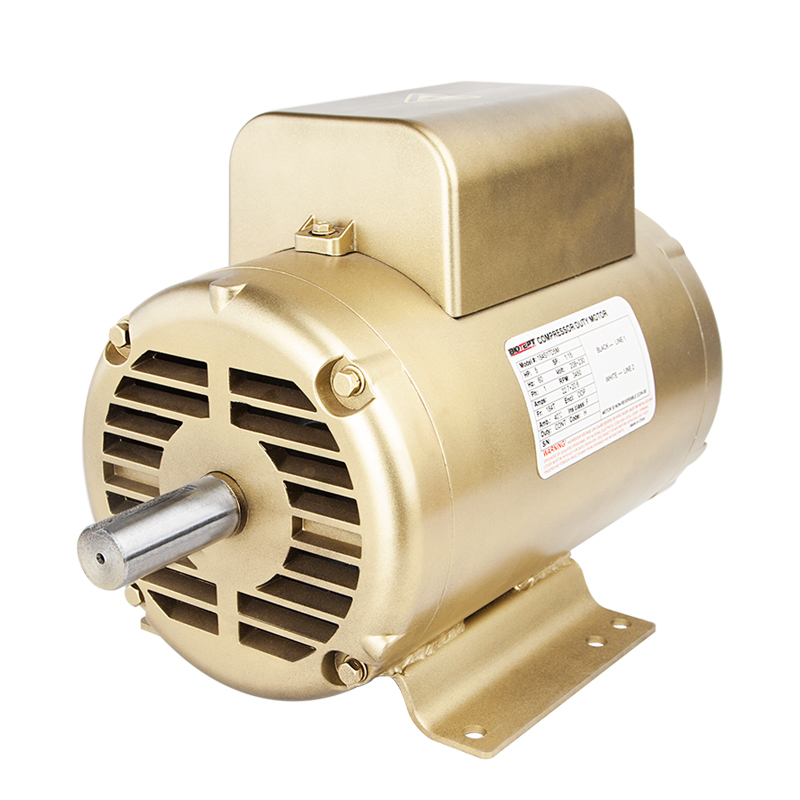

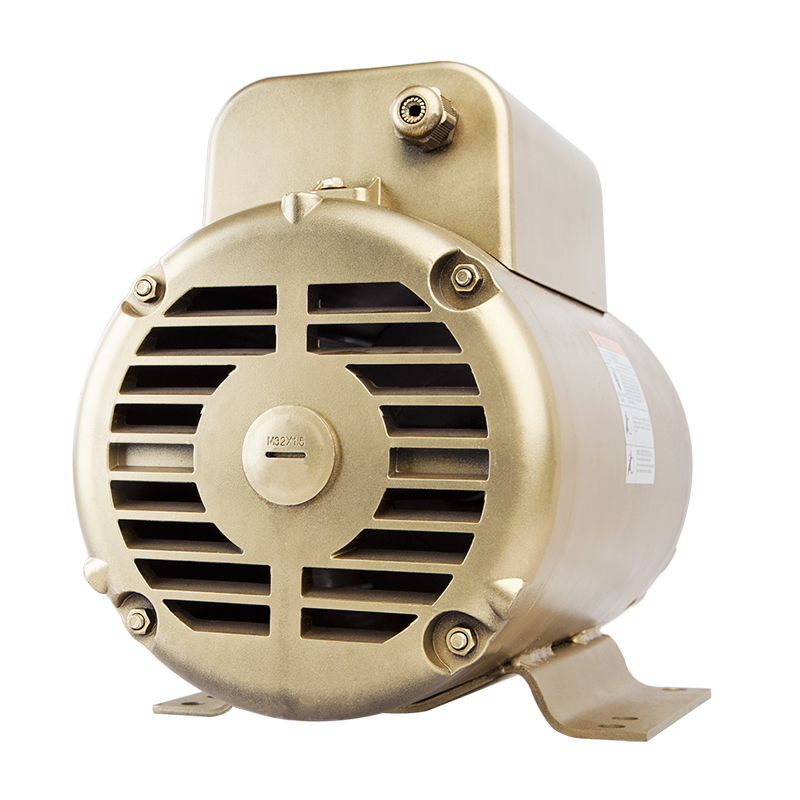

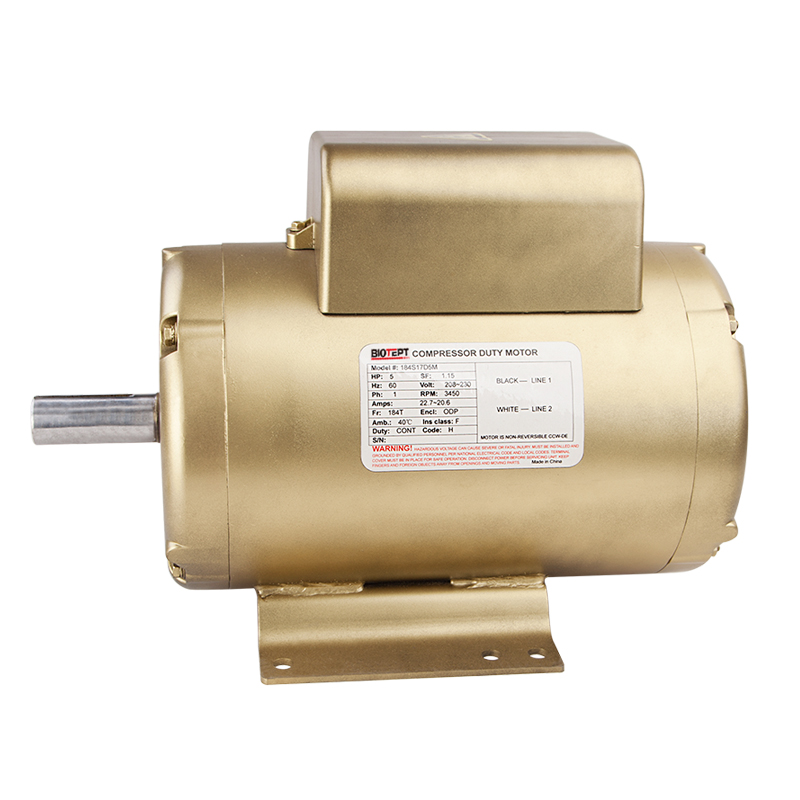

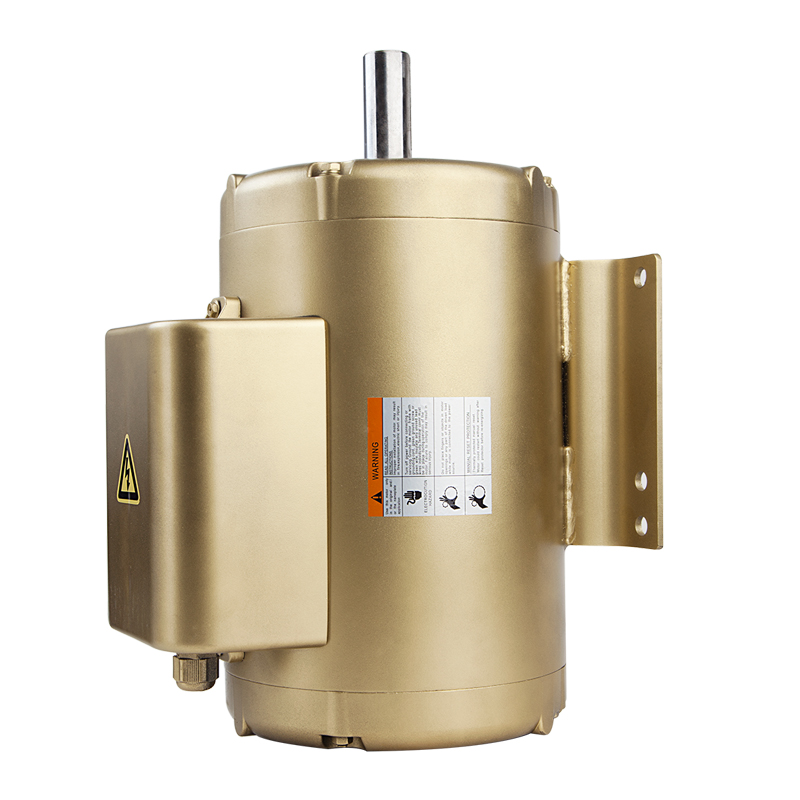

5HP Air Compressor Motor 184T Frame AC Electric Motor 3450 RPM TEFC 208-230V
High-performance 5HP Air Compressor Motor, 184T frame, AC Electric Motor with 3450 RPM, TEFC enclosure, and 208-230V voltage. Ideal for robust air compressor applications. 5HPMotor #AirCompressor Motor #TEFCMotor
- Information
- Video
- Downloads
This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. Below is a full list of specifications. Specifications: • Open Drip Proof (ODP) • Single Phase • 5 HP • 3450 RPM • 60hz • 208-230 Volts • AMB 40 °C • Frame: 56 • Duty: Cont. Compressor • Service Factor: 1.0, full load Amps. @230v. 22A
4 horsepower air compressor motor
air compressor motor wiring diagram
how to install air compressor motor
homedepot air compressor, please contact biote company
High Starting Torque: Compressors often require a high torque to start under load. The motor is designed to deliver sufficient starting torque to overcome the initial resistance and bring the compressor up to speed.
Enhanced Cooling: Compressor duty motors are equipped with efficient cooling mechanisms to dissipate heat effectively. This helps to maintain optimal operating temperatures and extend the motor's lifespan.
Heavy-Duty Construction: These motors are built with rugged materials and reinforced components to withstand the mechanical stresses associated with compressor operations. They are designed to handle continuous duty cycles and resist wear and tear.
Voltage and Frequency Compatibility: Compressor duty motors are available in various voltage and frequency configurations to match the specific requirements of the compressor system. This ensures seamless integration and compatibility with the power supply.
Reliable Performance: The motors undergo rigorous testing and quality control measures to ensure reliable performance in demanding compressor applications. They are designed to operate efficiently and deliver consistent power output over extended periods.
Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time
FEATURES AT A GLANCE
This NEMA standard High power copper wire motors allows conserving energy over extended periods, can reduce the energy cost or overhead, reducing energy costs or overheads, easy to move. |
This NEMA motor adopts heavy rolled steel shell structure, with a maximum speed of 3450 RPM, The motor adopts a pure copper motor to achieve stable performance and ensure a long lifespan. |
The rotation is non reversible, The rated horsepower, rated voltage and rated current should be checked before the motor is put into operation to ensure that it is used in the correct environment. |
Equipped with UL approved manual thermal overload, Capacitors & High quality call bearin gto ensure the lifetime |
Automatic assembly, get the shaft into the machinery. get the rotor and stator install together, realizes zero error and high efficiency production. speed up the delivery time |
The NEMA electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc. |
We supply Compressor Duty Electric Motor by Totally Enclosed Fan Cooled(TEFC). The power from 1HP to 10HP, Pole have 2P and 4P. IP44 protection Class, If you need more information. Please send an email for detailed inquiry at any time
Company Information
Our company was founded in 2007, and possesses advanced production equipment and automated assembly lines. Our main products include AC motors, DC motors and other accessories, electronic components, plastic product materials, and hardware products. We have more than 50 Professional and technical personnel of various projects, have strong motor design and production & processing capacity.
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
FAQ
Q1: What kind motors you can provide?
A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
