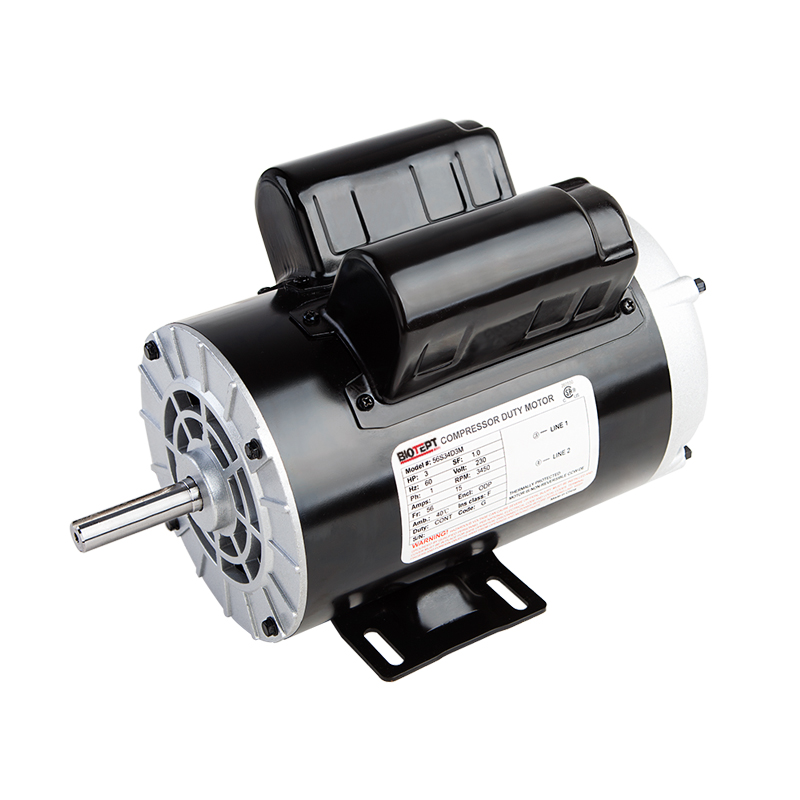

2HP SPL Compressor Duty Electric AC Motor 3450RPM 56 frame 5/8
  • Information
  • Video
  • Downloads

2hp spl.jpg

2 HP SPL 3450 RPM, 56 Frame, 120/240V, 15/7.5Amp 5/8" Shaft, Single Phase NEMA Air Compressor Motor

Open dripproof
Single phase Full Load amps: 15/7.5Amp, 120/240V
2 HP SPL 3450 RPM
Frame Type:56, 5/8" Keyed shaft, Shaft length:2 1/16"

High Starting Torque: Compressors often require a high torque to start under load. The motor is designed to deliver sufficient starting torque to overcome the initial resistance and bring the compressor up to speed.

Enhanced Cooling: Compressor duty motors are equipped with efficient cooling mechanisms to dissipate heat effectively. This helps to maintain optimal operating temperatures and extend the motor's lifespan.

Heavy-Duty Construction: These motors are built with rugged materials and reinforced components to withstand the mechanical stresses associated with compressor operations. They are designed to handle continuous duty cycles and resist wear and tear.

Voltage and Frequency Compatibility: Compressor duty motors are available in various voltage and frequency configurations to match the specific requirements of the compressor system. This ensures seamless integration and compatibility with the power supply.

Reliable Performance: The motors undergo rigorous testing and quality control measures to ensure reliable performance in demanding compressor applications. They are designed to operate efficiently and deliver consistent power output over extended periods.






Model

HP

RPM

Voltage

Frame

Full Load Amps @230V

BTA01

1/2

3450

115/208-230

56

4.2

BT-A02

1/2

1725

115/208-230

56

4.3

BTLA03

3/4

3450

115/208-230

56

4.9

BT-A04

3/4

1725

115/208-230

56

5.5

BT-A05

1

3450

115/208-230

56

5.5

BT-A06

1

1725

115/208-230

56

6.7

BT-A07

1-1/2

3450

115/208-230

56

7.5

BT-A08

1-1/2

1725

115/208-230

56

9.0

BT-A09

2

3450

115/208-230

56

9.6

BT-A10

2

1725

115/208-230

56

9.8

BT-A11

3

3450

208-230

56

13.6

BT-A12

3

1725

208-230

56

14

BT-A13

SPL5

3450

208-230

56

15

BT-A14

SPL1.8

:3450

120/240

56

14.8/7.4

BT-A15

SPL2

3450

120/240

56

15/7.5

BT-A16

3

3450

230

56

15

BT-A17

3.5

6450

230

56

16.2

BT-A18

3.7

3450

230

56

17.2

BT-A19

4

3450

230

56

17.5

BT-A20

5

3450

208-230

56

22

BT-A21

5

3450

208-230

184

19.8

BT-A22

5

1725

208-230

215

23

BT-A23

7.5

3450

208-230

215

32

BT-A24

7.5

1725

208-230

215

33.8

BT-A25

10

3450

208-230

215

41.5

BT-A26

10

1725

208-230

215

40.0

Please purchase motor according to the specific needs of the parameters, you can send an email for detailed inquiry at any time


FEATURES AT A GLANCE

This NEMA standard High power copper wire motors allows conserving energy over extended periods, can reduce the energy cost or overhead, reducing energy costs or overheads, easy to move.

This NEMA motor adopts heavy rolled steel shell structure, with a maximum speed of 3450 RPM, The motor adopts a pure copper motor to achieve stable performance and ensure a long lifespan.

The rotation is non reversible, The rated horsepower, rated voltage and rated current should be checked before the motor is put into operation to ensure that it is used in the correct environment.

Equipped with UL approved manual thermal overload, Capacitors & High quality call bearin gto ensure the lifetime

Automatic assembly, get the shaft into the machinery. get the rotor and stator install together,  realizes zero error and high efficiency production. speed up the delivery time

The NEMA electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.


We supply Compressor Duty Electric Motor by Totally Enclosed Fan Cooled(TEFC). The power from 1HP to 10HP,  Pole have 2P and 4P.  IP44 protection Class,  If you need more information. Please send an email for detailed inquiry at any time


Company Information

Our company was founded in 2007, and possesses advanced production equipment and automated assembly lines. Our main products include AC motors, DC motors and other accessories, electronic components, plastic product materials, and hardware products. We have more than 50 Professional and technical personnel of various projects, have strong motor design and production & processing capacity.
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!

FAQ

Q1: What kind motors you can provide?
A1: Our main products are NEMA standard and IEC standard motors,  Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on

Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce

Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.

Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.

Q5: Do you have any certifications?
A5: We have North America certificates

Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
