Large torque 24V Automatic tarpaulin motor for dump truck

Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 24v- 220v
4. Speed:20rpm-500rpm
5. Type: 70ZYT, 80ZYT, 90ZYT, 110ZYT
6. Worm gear box: RV030, RV040, RV050, RV063, RV075, NMRVgear reducer
7. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.

  • Information
  • Video
  • Downloads

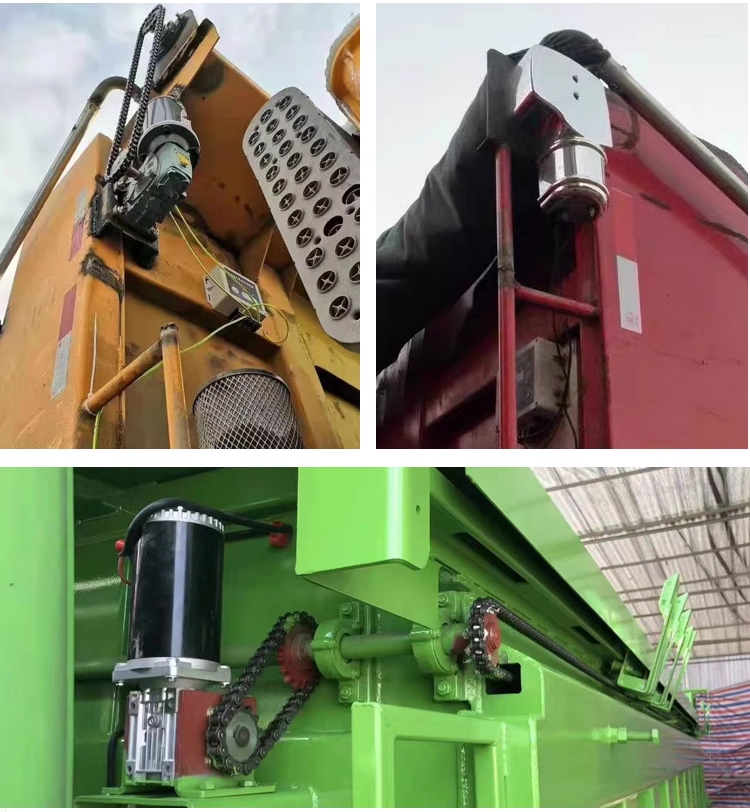

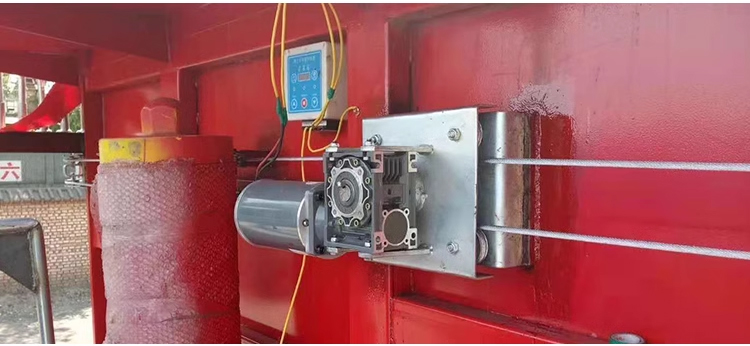

The Automatic Tarp Motor for Dump Trucks offers the following features and functionalities:

Automation: This motor is specifically designed for automatically rolling and unrolling the tarp on dump trucks. It enables the seamless operation of tarp deployment and retraction, providing convenience and efficiency while reducing the need for manual intervention.

Powerful Output: The motor delivers sufficient power output to ensure smooth rolling and unrolling of the tarp, accommodating various working conditions and heavy loads.

High Efficiency: The motor exhibits high conversion efficiency, enabling quick tarp deployment and retraction, thereby enhancing work efficiency and saving time.

Reliability: Built with high-quality materials and a robust design, the motor ensures durability and stability. It can withstand demanding working environments and exhibits excellent resistance to factors such as vibrations, humidity, and dust.

Safety: The motor is equipped with safety protection mechanisms such as overload protection and limit switches to ensure safe and reliable operation.

Adaptability: The motor can be customized and adapted to different dump truck models and sizes, catering to specific application requirements.

In summary, the Automatic Tarp Motor for Dump Trucks offers automation, powerful output, high efficiency, reliability, safety, and adaptability. It provides a convenient, fast, and reliable solution for tarp operations in dump trucks.


This series of motors operates smoothly with low noise, high transmission speed ratio, and strong carrying capacity. They can be matched with various types of motors to achieve speed regulation and drive control.

We make Customizable voltage, dimension, performance, shaft, mounting...etc

We make integrated encoder, gearbox, brake...etc

Please Send Inquiry or Question, and We will get you the Best and Most Cost Effective Solution/Proposal.

OPTIONS:

Size: 32mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 90mm 110mm

Rated voltage : 10v 12v 18v 24v 36v 48v upto 380vdc

Rated torque : upto 3Nm (calculated without gearbox)

Rated speed: upto 15000rpm

Rated power: upto 1000w

Protection class IP 40 50 54  56 66 67 Option

BELOW ARE ONLY TYPICAL MODELS, PLS CONTACT US FOR CUSTOMIZED MOTORS

These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.



The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.

TypeTorqueSpeedPowerVoltageCurrent(A)CW/CCW
(mN.m)(r/min)(w)(v)<speed   tolerance(r/min)
110ZYT0178415001231101.8100
110ZYT0278415001232200.9100
110ZYT0363730002001102.8200
110ZYT0463730002002201.4200
110ZYT0563730002002413200
110ZYT51117715001851102.5100
110ZYT52117715001852201.25100
110ZYT5398030003081104200
110ZYT5498030003082202200
110ZYT5598030003082416.5200







TypeTorqueSpeedPowerVoltageCurrent(A)CW/CCW
(mN.m)(r/min)(w)(v)<speed   tolerance(r/min)
110ZYT101156015002451103100
110ZYT102156015002452201.5100
110ZYT103127430004001104.8200
110ZYT104127430004002202.4200
110ZYT105127430004002422.5200
110ZYT151239015003751104.5100
110ZYT152239015003752202.3100
110ZYT153223030007001108.5200
110ZYT154223030007002204.2200
110ZYT155223030007002445200
