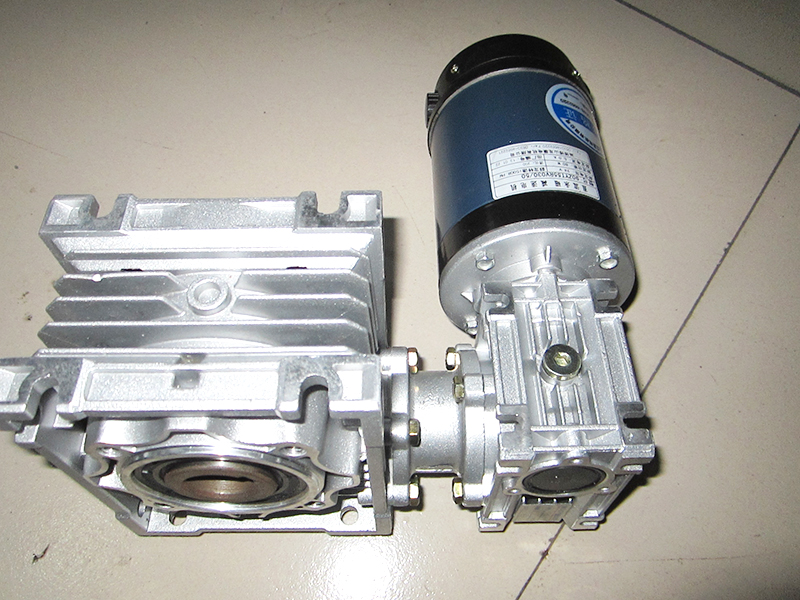

Worm Gearbox Dual Shaft Right Angle Worm Gear Motor

Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 24v- 220v
4. Speed:20rpm-500rpm
5. Type: 70ZYT, 80ZYT, 90ZYT, 110ZYT
6. Worm gear box: RV030, RV040, RV050, RV063, RV075, NMRVgear reducer
7. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.

  • Information
  • Video
  • Downloads

Introducing the RV050 gear motor equipped with a high-performance 12V or 24V ZYT DC motor, a reliable and efficient solution for various industrial applications. This motor combines the robust and powerful ZYT DC motor with the precision-engineered RV050 gear reducer, delivering exceptional performance and reliable operation.

The RV050 gear motor is designed to provide optimal power and torque output while maintaining energy efficiency. With a choice of 12V or 24V DC motor options, it can be tailored to meet specific voltage requirements, ensuring compatibility with your system and maximizing performance.

The integration of the RV050 gear reducer enhances the functionality of this motor by providing precise speed reduction and torque multiplication. It enables smooth and controlled motion, making it ideal for applications that require accurate and reliable power transmission.

The compact and versatile design of the RV050 gear motor allows for easy installation in various industrial machinery and equipment. It is suitable for applications such as conveyor systems, robotic systems, automated gates, and more, where space may be limited.

Built with high-quality materials and meticulous craftsmanship, the RV050 gear motor ensures durability and longevity. It is engineered to withstand demanding operating conditions, providing reliable performance even in harsh environments.

Experience the power and efficiency of the RV050 gear motor with a 12V or 24V ZYT DC motor, a dependable solution that delivers exceptional torque and precision. Trust in its performance to drive your industrial applications with reliability and efficiency.

This series of motors operates smoothly with low noise, high transmission speed ratio, and strong carrying capacity. They can be matched with various types of motors to achieve speed regulation and drive control.

We make Customizable voltage, dimension, performance, shaft, mounting...etc

We make integrated encoder, gearbox, brake...etc

Please Send Inquiry or Question, and We will get you the Best and Most Cost Effective Solution/Proposal.

OPTIONS:

Size: 32mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 90mm 110mm

Rated voltage : 10v 12v 18v 24v 36v 48v upto 380vdc

Rated torque : upto 3Nm (calculated without gearbox)

Rated speed: upto 15000rpm

Rated power: upto 1000w

Protection class IP 40 50 54  56 66 67 Option

BELOW ARE ONLY TYPICAL MODELS, PLS CONTACT US FOR CUSTOMIZED MOTORS

These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.



The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.

TypeTorqueSpeedPowerVoltageCurrent(A)CW/CCW
(mN.m)(r/min)(w)(v)<speed   tolerance(r/min)
110ZYT0178415001231101.8100
110ZYT0278415001232200.9100
110ZYT0363730002001102.8200
110ZYT0463730002002201.4200
110ZYT0563730002002413200
110ZYT51117715001851102.5100
110ZYT52117715001852201.25100
110ZYT5398030003081104200
110ZYT5498030003082202200
110ZYT5598030003082416.5200







TypeTorqueSpeedPowerVoltageCurrent(A)CW/CCW
(mN.m)(r/min)(w)(v)<speed   tolerance(r/min)
110ZYT101156015002451103100
110ZYT102156015002452201.5100
110ZYT103127430004001104.8200
110ZYT104127430004002202.4200
110ZYT105127430004002422.5200
110ZYT151239015003751104.5100
110ZYT152239015003752202.3100
110ZYT153223030007001108.5200
110ZYT154223030007002204.2200
110ZYT155223030007002445200
