J-SZ(ZYT)PX Micro DC Gear Motor

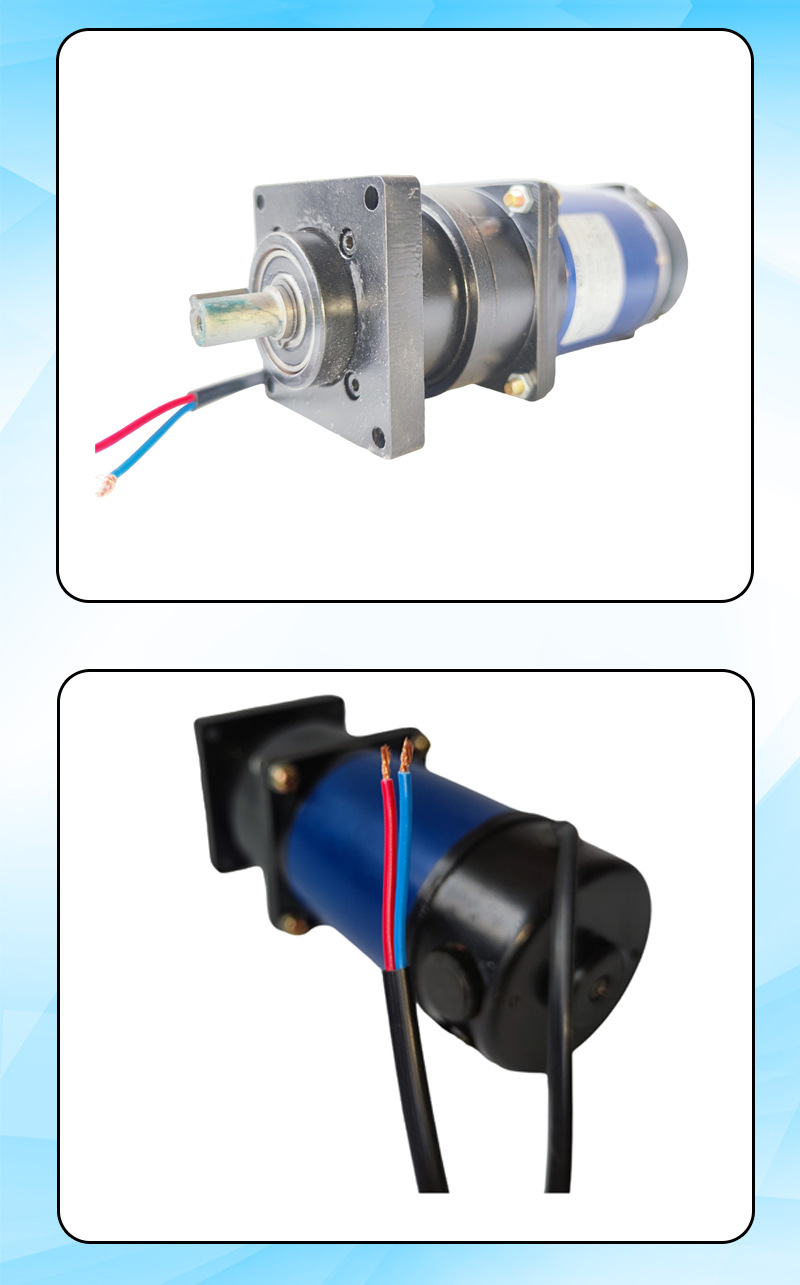

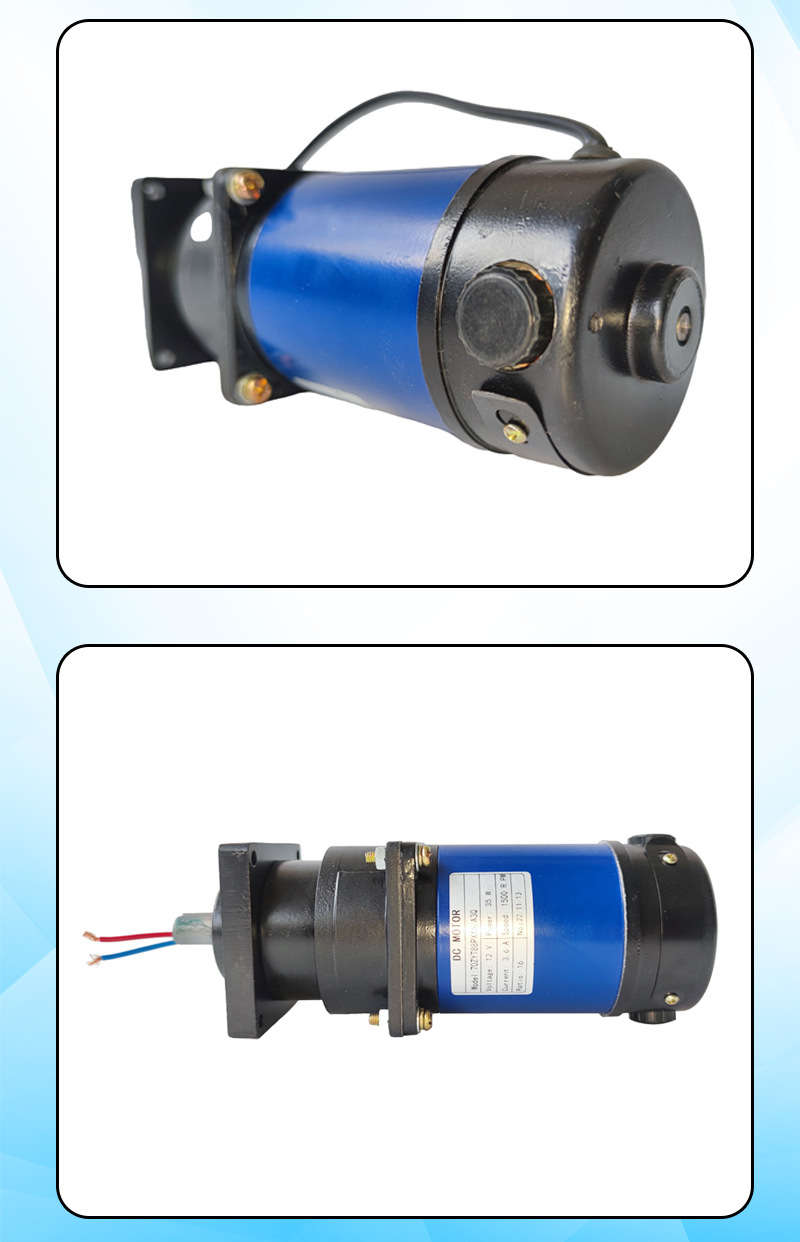

Introducing the 110PX64-80B5-90B5 Planetary Gear Reducer AC/DC Motor

High Torque Capability: This motor is designed to provide impressive torque output, making it ideal for applications that require substantial power at low rotational speeds. It excels in tasks that demand heavy lifting or overcoming resistance.

DC Permanent Magnet Technology: Equipped with a permanent magnet, this motor offers efficient and reliable operation. The permanent magnet design ensures consistent performance, reduced energy consumption, and minimal maintenance requirements.

Gear Motor Configuration: The integration of a gear system enhances the motor's torque multiplication capabilities. It allows for smooth power transmission, precise control, and improved overall efficiency, making it suitable for a wide range of industrial applications.

Durable Construction: Our DC Permanent Magnet Gear Motor is built to withstand demanding environments. Its sturdy construction and high-quality materials ensure long-lasting performance, even in rugged conditions.

Versatile Applications: This motor finds its applications in various industries, including robotics, automation, material handling, machinery, and more. It is well-suited for tasks such as conveyor systems, lifting equipment, and precision motion control applications.

PX Series General Speed Ratios

First stage: 4, 6

Second stage: 16, 24, 36

Third stage: 64, 96, 144, 216

Fourth stage: 256, 384, 576, 864, 1296

90PX Series Non-standard Speed Ratios - Level: 3

Second stage: 9, 12, 18

Third stage: 27, 48, 54, 72, 108

Fourth stage: 81, 162, 192, 288, 324, 432, 648

110PX Series Non-standard Speed Ratios - First stage: 5

Second stage: 20, 25, 30

Third stage: 80, 100, 120, 125, 150, 180

Fourth stage: 320, 400, 480, 500, 600, 625, 720, 750, 900, 1080

Customizable gearboxes with special speed ratios, rotational speed, installation dimensions, and other non-standard specifications.

Selection Example

Users can correctly select the power and model of the gearbox based on the actual working conditions and load characteristics, referring to the following information.

Low Speed High Torque-1.jpg

Low Speed High Torque.jpg

Planetary Gear Parameter

Power: 20W~2000W

Voltage: 12, 24, 36V, 48V, 90V, 110V, 180V, 220V (Accept other voltage)

Speed:1500r/min   3000r/min  6000r/min(55, 70)

Install type: A1 foot mounted. A3 flange mounted, A2 foot with flange

Overall diameter(mm):55, 70, 90, 11, 130

Electric motor parameter

Size: 32mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 90mm 110mm

Rated voltage : 10v 12v 18v 24v 36v 48v upto 380vdc

Rated torque : upto 3Nm (calculated without gearbox)

Rated speed: upto 15000rpm

Rated power: upto 1000w

Protection class IP 40 50 54  56 66 67 Option

BELOW ARE ONLY TYPICAL MODELS, PLS CONTACT US FOR CUSTOMIZED MOTORS

These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.



The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.

Applications:

The 110PX64-80B5-90B5 Planetary Gear Reducer AC/DC Motor finds its applications in a wide range of industries, including:

Application:

Robotics and Automation

Material Handling Equipment

Conveyors and Belt Systems

Industrial Machinery

Packaging and Printing Equipment

HVAC Systems

Automotive Assembly Lines

Experience the power and efficiency of the 110PX64-80B5-90B5 Planetary Gear Reducer AC/DC Motor. With its exceptional performance and versatile capabilities, it is the perfect choice for your industrial needs. Contact us today to learn more about how this motor can enhance your operations.

Planetary Gear Motor.jpg
