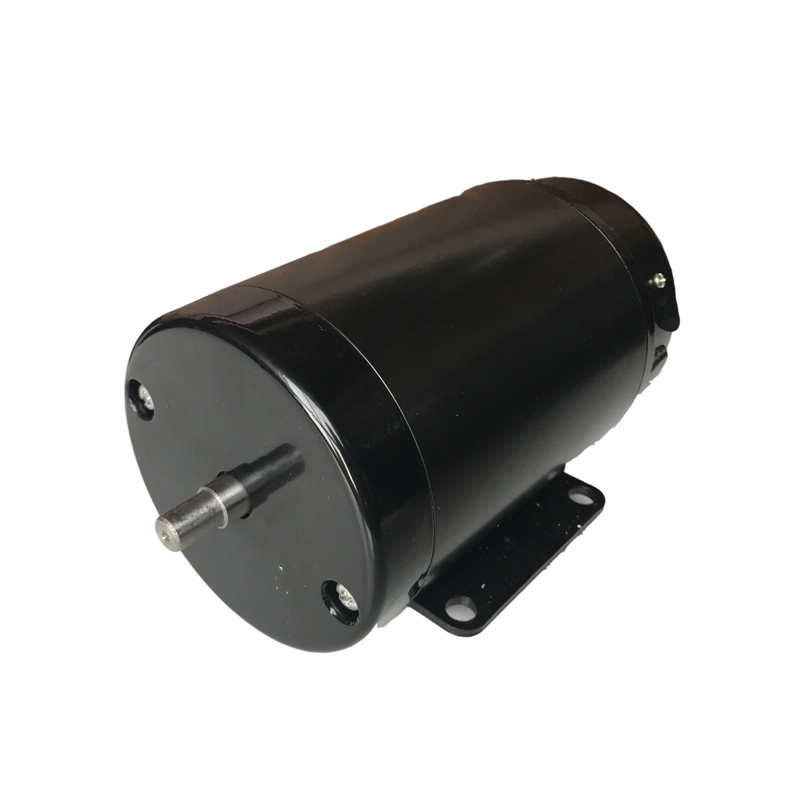

55ZYT High Torque 35w 24v 3000RPM Permanent Magnet
Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 24v, 27v, 48v, 110v
4. Speed:3000rpm
5. Type: 55ZYT01
6. Shaft dia: 9mm
7. Diameter:55mm
8. Direction: CW /CCW
9. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.
- Information
- Video
- Downloads
ZYT55 35W 3000RPM 24V DC
35W brushed motor is a type of electric motor that has a power output of up to 35 watts. It is a low-power, low-cost motor that is commonly used in various industrial and commercial applications such as power tools, home appliances, and automotive systems.
The motor consists of a rotor, stator, commutator, windings, brushes, and brush holders. The rotor is the rotating part of the motor and is made up of a shaft, commutator, and a set of windings. The stator is the stationary part of the motor and is made up of a series of permanent magnets or electromagnets.
When electrical current is applied to the windings on the rotor, it creates a magnetic field that interacts with the magnetic field of the stator, causing the rotor to turn. The brushes, which are small pieces of carbon or graphite, conduct electrical current to the windings via the commutator, ensuring that the electrical current is delivered to the windings in the correct sequence to maintain the rotation of the rotor.
One of the main advantages of a 35W brushed motor is its low cost and simple design, making it an ideal solution for various low-power applications. However, they do require periodic maintenance or replacement of the brushes and commutator due to wear and tear.
In summary, a 35W brushed motor is a low-power, low-cost motor commonly used in various industrial and commercial applications. It consists of a rotor, stator, commutator, windings, brushes, and brush holders, and is an ideal solution for various low-power applications.
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 55ZYT01 | 63.7 | 3000 | 20 | 24 | 1.5 | 200 |
| 55ZYT02 | 63.7 | 3000 | 20 | 27 | 1.3 | 200 |
| 55ZYT03 | 63.7 | 3000 | 20 | 48 | 0.7 | 200 |
| 55ZYT04 | 63.7 | 3000 | 20 | 110 | 0.34 | 200 |
| 55ZYT05 | 55.7 | 6000 | 35 | 24 | 2.5 | 300 |
| 55ZYT06 | 55.7 | 6000 | 35 | 27 | 2.2 | 300 |
| 55ZYT07 | 55.7 | 6000 | 35 | 48 | 1.3 | 300 |
| 55ZYT08 | 55.7 | 6000 | 35 | 110 | 0.54 | 300 |
| 55ZYT51 | 92.3 | 3000 | 29 | 24 | 2.1 | 200 |
| 55ZYT52 | 92.3 | 3000 | 29 | 27 | 1.8 | 200 |
| 55ZYT53 | 92.3 | 3000 | 29 | 48 | 1.1 | 200 |
| 55ZYT54 | 92.3 | 3000 | 29 | 110 | 0.46 | 200 |
| 55ZYT55 | 79.6 | 6000 | 50 | 24 | 3.45 | 300 |
| 55ZYT56 | 79.6 | 6000 | 50 | 27 | 3.1 | 300 |
| 55ZYT57 | 79.6 | 6000 | 50 | 48 | 1.74 | 300 |
| 55ZYT58 | 79.6 | 6000 | 50 | 110 | 0.74 | 300 |
| 55ZYT65 | 89.2 | 7500 | 70 | 110 | 1 | 400 |
